Engel e-victory 310/90 + easix KR10 Agilus, 2020
Product information "Engel e-victory 310/90 + easix KR10 Agilus, 2020"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Engel |
|---|---|
| 02-type: | e-victory 310/90 + easix KR10 Agilus |
| 03-year of construction: | 2020 |
| 04-condition: | aus laufender Produktion |

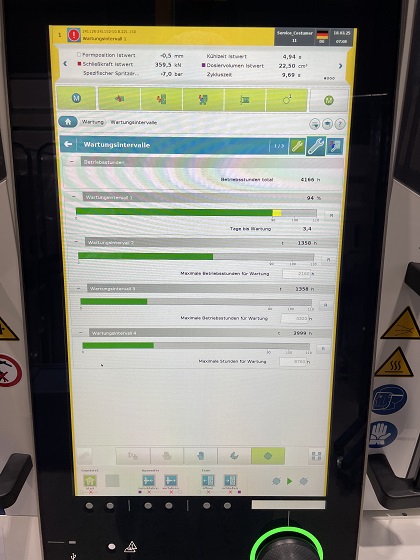

| 05-operating hours: | ca. 4.200 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 90 t |
| 12-opening path: | 500 mm |
| 13-mould installation height min: | 300 mm |
| 14-mould installation height max.: | 500 mm |
| 15-tie bar distance (h x v): | holmlos |
| 16-plate dimension (h x v): | 740 x 680 mm |
| 17-centering (fix- movingplate): | 125 mm |
| 20-INJECTION UNIT: | IU310 |
| 21-screw diameter: | 30 mm |
| 22-injection weight in polystyrol: | 123 g |
| 23-stroke volume: | 113 cm³ |
| 24-injection pressure: | 2.400 bar |
| 30-CONTROL: | CC300 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 1 x hydr. |
| 42-air valves: | 1 |
| 43-hot runner control devices : | 24 |

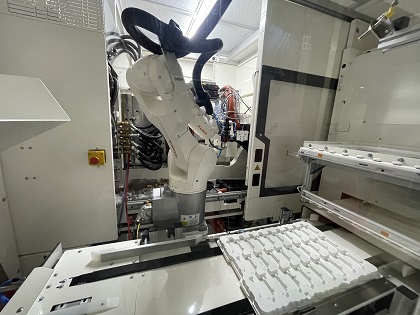

| 44-robot interface: | ER-IS für Engel Roboter |
| 45-other equipment : | Siehe Auftragsbestätigung, Reinraumausrüstung |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 11,2 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 7.500 kg |
| 55-total size L x B x H: | 4,9 x 1,6 x 2,1 m |
