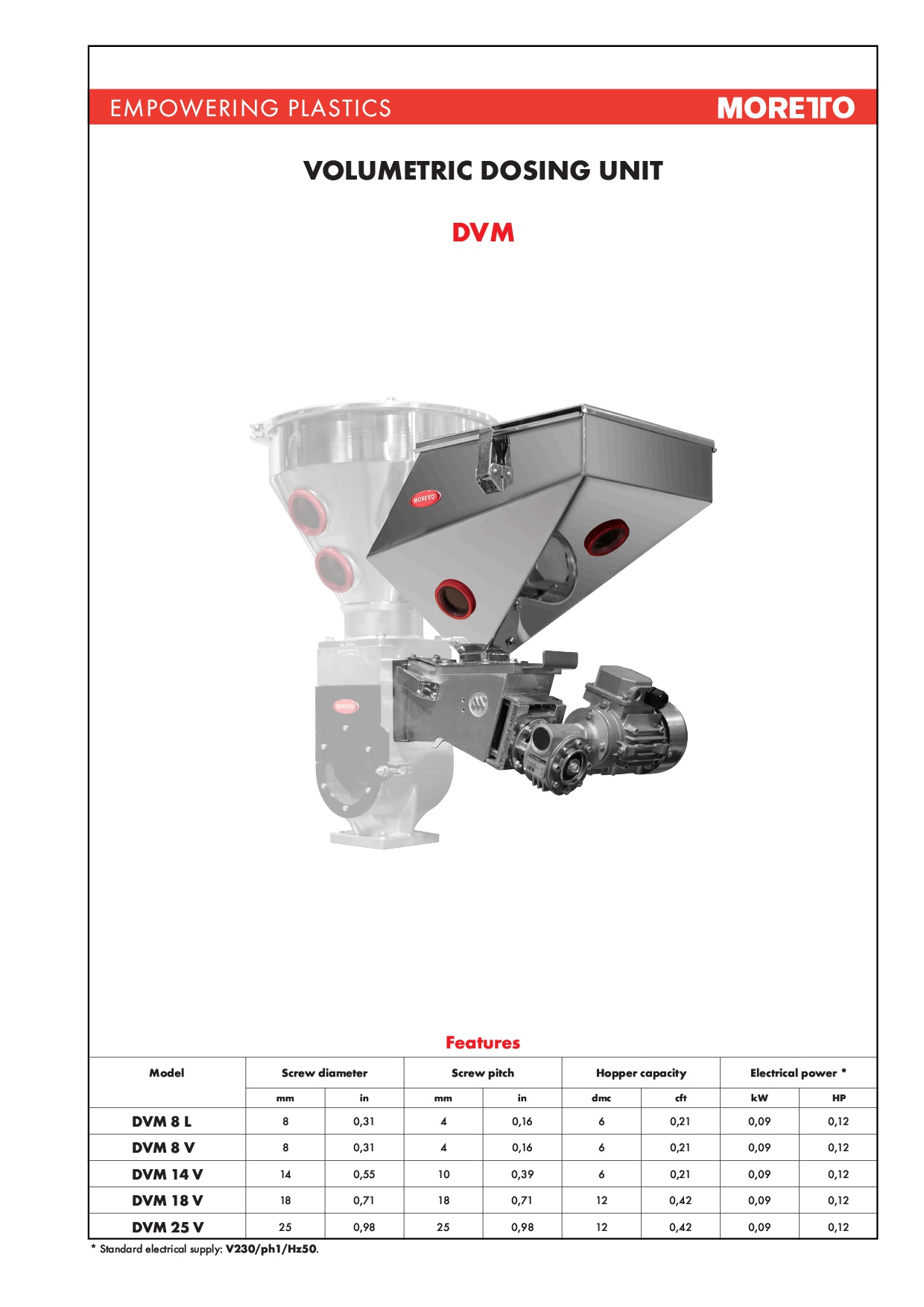

Moretto volumetric dosing unit DVM18V
Product information "Moretto volumetric dosing unit DVM18V"
- new
- throughput 1,8 - 25,5 kg. / hour
- direct adjustment of the percentage
- stainless steel dosing screw with patented profile
- memory for up to 100 recipes
The Moretto DVM series is the simplest solution for dosing masterbatch or additives. The direct setting of the percentage of the quantity to be dosed simplifies communication with the operator. The motorised dosing screw, controlled by an inverter, guarantees reliability. The dosing screw can be timed out. The inclined and guided dosing screw ensures maximum stability and precision. Stainless steel augers with a patented profile are available in various diameters for perfect dosing.
| Gesamtgewicht: | 25 kg |
|---|---|

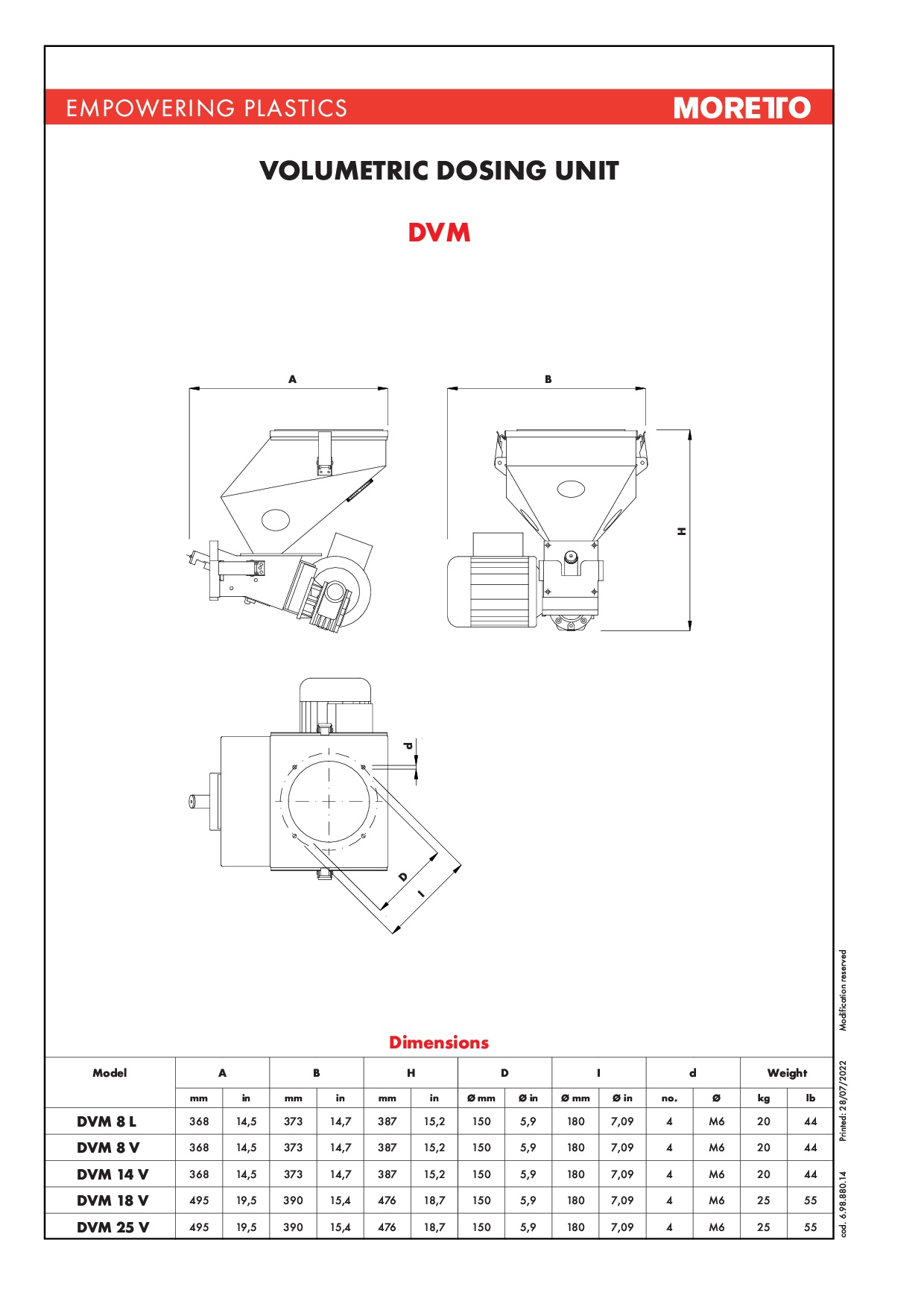

| Gesamtgröße L x B x H: | 49,5 x 39 x 47,6 cm |
| Schneckendurchmesser: | 18 mm |
| Steigung der Schnecke: | 18 mm |
| Trichterkapazität: | 12 L |
| condition: | neu |
| elektrische Leistung: | 0,09 kW |
| troughput min.-max.: | 1,8 - 25,5 kg. / Std. |
