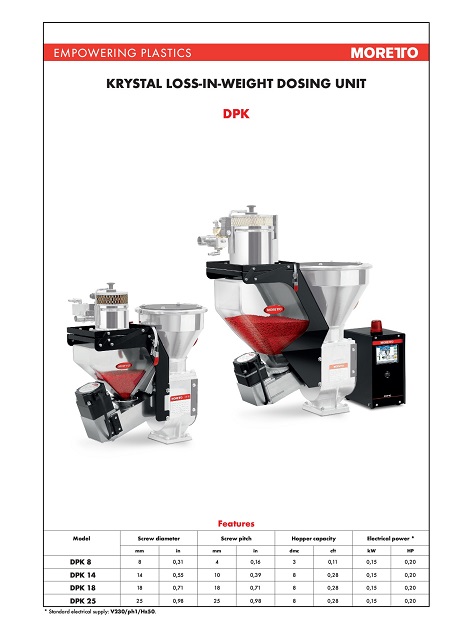

Moretto loss-in-weight dosing unit DPK8
Product information "Moretto loss-in-weight dosing unit DPK8"
- new -
- throughput 0.33 - 2 kg / hr.
- direct setting of the percentage
- touch view control
- removable transparent hopper
The DPK is a compact, precise loss-in-weight dosing unit that is perfect for dosing small quantities of colour batches or additives in a flow of raw material. Compared to other systems, the DPK has a significantly higher precision, as only the batch hopper is weighed.
The material hopper is made of transparent impact-resistant acrylic material and is free of electrostatic charge. The additive is located in a transparent funnel for quick and easy checking of the fill level. This can be easily removed and replaced, enabling a quick change of material. Thanks to the loss-in-weight process and the stepper motor used, the accuracy of the dosing device is guaranteed even at low dosing speeds. The DPK is vibration-resistant. Direct mounting of the feeder is possible. Various recipes can be saved and easily changed using the touchscreen interface.
.
| Gesamtgewicht: | 21 kg |
|---|---|
| Gesamtgröße L x B x H: | 32 x 21 x 34,5 cm |
| Schneckendurchmesser: | 8 mm |
| Steigung der Schnecke: | 4 mm |
| Trichterkapazität: | 3 L |
| condition: | neu |
| elektrische Leistung: | 0,15 kW |
| troughput min.-max.: | 0,3 - 2 kg / Std. |
