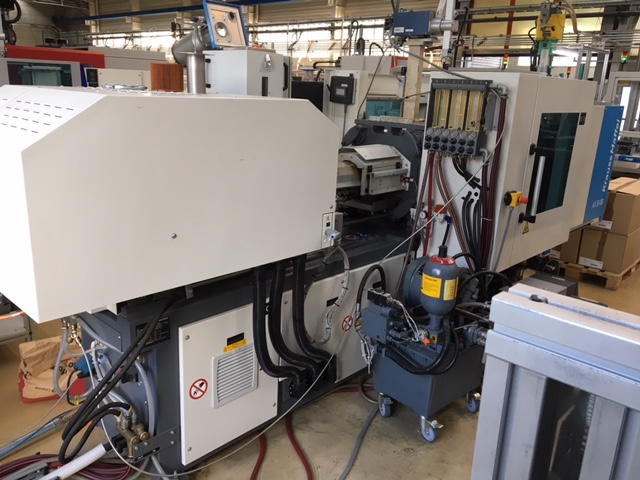

Krauss Maffei KM50-180AX, 2013
Product information "Krauss Maffei KM50-180AX, 2013"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Krauss Maffei |
|---|---|
| 02-type: | KM50-180AX |
| 03-year of construction: | 2013 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | ca. 26.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 50 t |
| 12-opening path: | 300 mm |
| 13-mould installation height min: | 150 mm |
| 14-mould installation height max.: | 470 mm |
| 15-tie bar distance (h x v): | 410 x 360 mm |
| 16-plate dimension (h x v): | 510 x 460 mm |
| 17-centering (fix- movingplate): | 125 mm |
| 20-INJECTION UNIT: | IU180 |
| 21-screw diameter: | 25 mm |
| 22-injection weight in polystyrol: | 54 g |
| 23-stroke volume: | 59 cm³ |
| 24-injection pressure: | 2.500 bar |
| 30-CONTROL: | MC5 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 2 x (Hydr. Kernzug-Aggregat) |
| 42-air valves: | 2 |
| 43-hot runner control devices : | 6 |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | Qualitätsüberwachungspacket |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 8,1 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 3.700 kg |
| 55-total size L x B x H: | 4,4 x 1,6 x 1,9 m |
