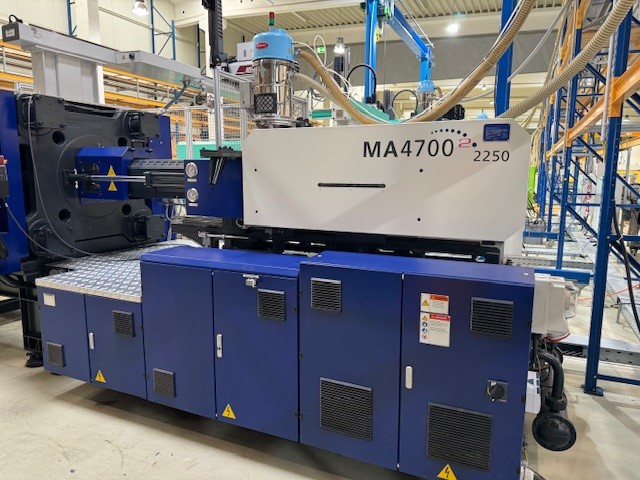

Haitian MA 4700 II 2200, 2015
Product information "Haitian MA 4700 II 2200, 2015 "
terms of delivery: EXW (ex Works) plus loading
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Haitian |
|---|---|
| 02-type: | MA 4700 II 2200 |
| 03-year of construction: | 2015 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | ca. 21.000 |

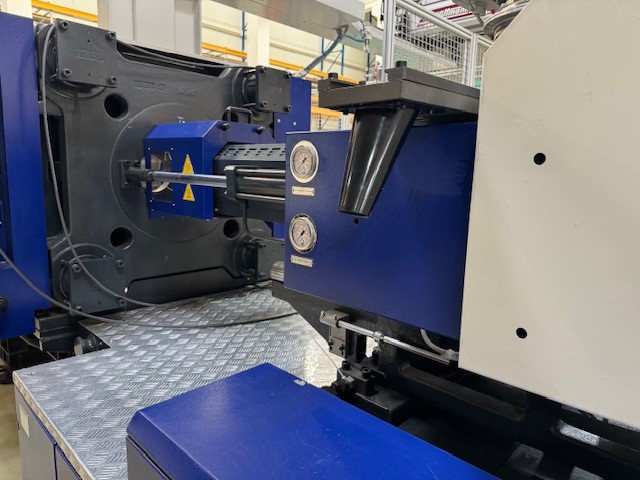

| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 470 t |
| 12-opening path: | 780 mm |
| 13-mould installation height min: | 320 mm |
| 14-mould installation height max.: | 780 mm |
| 15-tie bar distance (h x v): | 820 x 800 mm |
| 16-plate dimension (h x v): | 1210 x 1180 mm |
| 17-centering (fix- movingplate): | 200/200 mm |
| 20-INJECTION UNIT: | IU2200 |
| 21-screw diameter: | 70 mm |
| 22-injection weight in polystyrol: | 1.127 g |
| 23-stroke volume: | 1.239 cm³ |
| 24-injection pressure: | 1.820 bar |

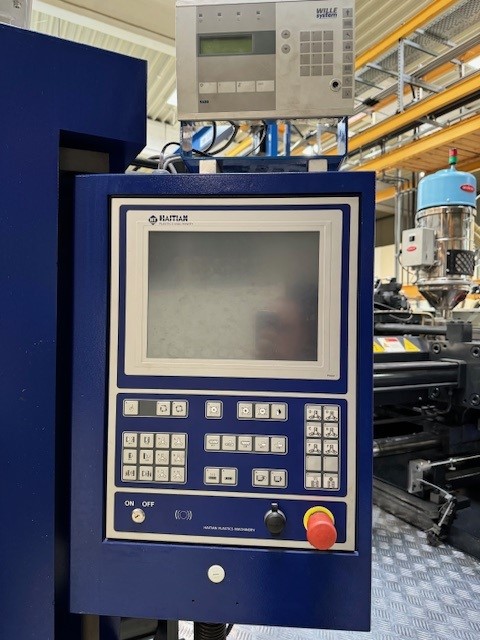

| 30-CONTROL: | CP252/P |
| 31-screen language: | DE |
| 32-operating manuel: | GB |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 2 |
| 42-air valves: | ja |
| 43-hot runner control devices : | - |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | - |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 36,9 kW |
| 52-pump drive power: | 45 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 18.500 kg |
| 55-total size L x B x H: | 8,6 x 2,0 x 2,4 m |
