Ferromatik Milacron Maxima MM 800-4880, 2007
Product information "Ferromatik Milacron Maxima MM 800-4880, 2007"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Ferromatik Milacron |
|---|---|
| 02-type: | Maxima MM 800-4880 |
| 03-year of construction: | 2007 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | 83000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 800 T |
| 12-opening path: | 2250 mm |
| 13-mould installation height min: | 400 mm |
| 14-mould installation height max.: | 1200 mm |
| 15-tie bar distance (h x v): | 1400 x 1080 mm |
| 16-plate dimension (h x v): | 1800 x 1480 mm |
| 17-centering (fix- movingplate): | 200 |
| 20-INJECTION UNIT: | IU4880 |
| 21-screw diameter: | 90 mm |
| 22-injection weight in polystyrol: | 2188 g |
| 23-stroke volume: | 2545 cm³ |
| 24-injection pressure: | 1917 bar |

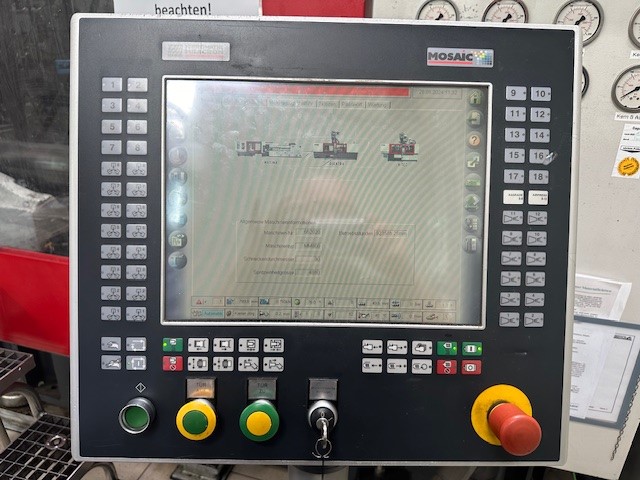

| 30-CONTROL: | Mosaic |
| 31-screen language: | DE / EN / FR |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 6 |
| 43-hot runner control devices : | 16 |
| 44-robot interface: | Euromap 67 |

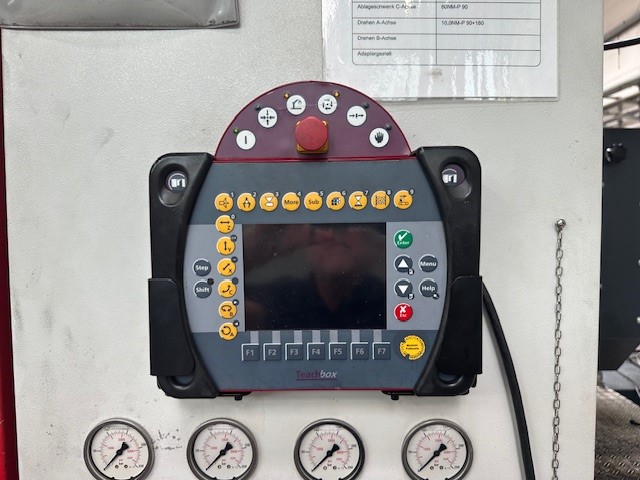

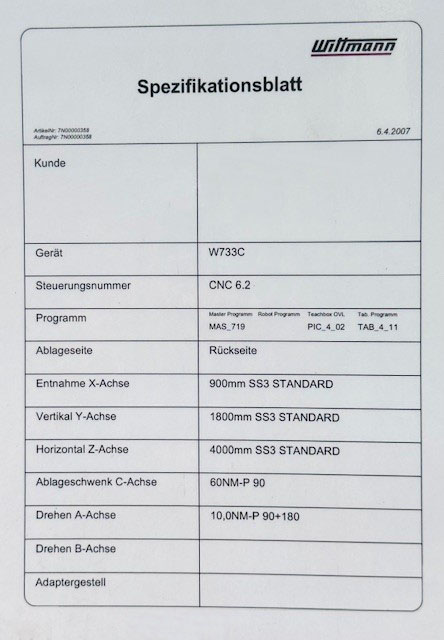

| 45-other equipment : | Wittmann W733: x-900mm, y-1.800mm, z-4.000mm, C-90°, A-90°-180° |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 55 kW |
| 52-pump drive power: | 130 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 40.000 kg |
| 55-total size L x B x H: | 9,9 x 3,1 x 2,9 m |
