Ferromatik Milacron EO30-55, 2014
Product information "Ferromatik Milacron EO30-55, 2014"
terms of payment: 100% prior to delivery
delivery time: on request
terms of delivery: ex location
| 01-manufacturer: | Ferromatik Milacron |
|---|---|
| 02-type: | Elektron EO 30-55 |
| 03-year of construction: | 2014 |
| 04-condition: | technisch überarbeitet |
| 05-operating hours: | ca. 27.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 30 t |
| 12-opening path: | 250 mm |
| 13-mould installation height min: | 150 mm |
| 14-mould installation height max.: | 330 mm |
| 15-tie bar distance (h x v): | 300 x 300 mm |
| 16-plate dimension (h x v): | 450 x 456 mm |
| 17-centering (fix- movingplate): | 125 /125 mm |
| 20-INJECTION UNIT: | IU55 |
| 21-screw diameter: | 22 mm |
| 22-injection weight in polystyrol: | 26 g |
| 23-stroke volume: | 29 cm³ |
| 24-injection pressure: | 1.939 bar |

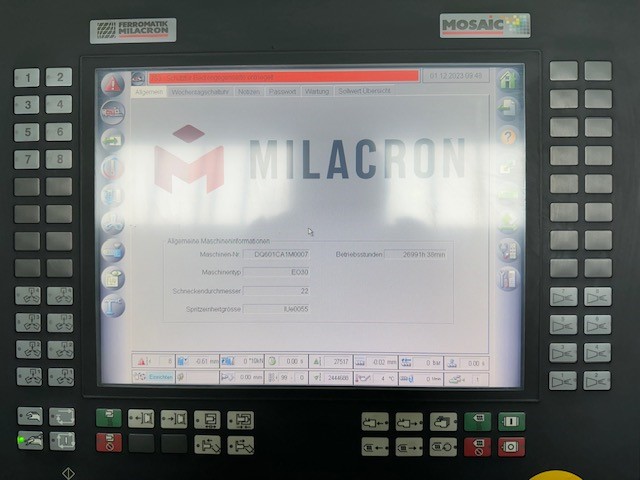

| 30-CONTROL: | Mosaic |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 42-air valves: | - |
| 43-hot runner control devices : | - |
| 44-robot interface: | Euromap 67 |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 4,9 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 2.700 kg |
| 55-total size L x B x H: | 3,5 x 1,3 x 1,9 m |
