Ferromatik Milacron Elektra evolution EE75-300, 2004
Product information "Ferromatik Milacron Elektra evolution EE75-300, 2004"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Ferromatik Milacron |
|---|---|
| 02-type: | EE75-300 |
| 03-year of construction: | 2004 |
| 04-condition: | technisch überarbeitet |

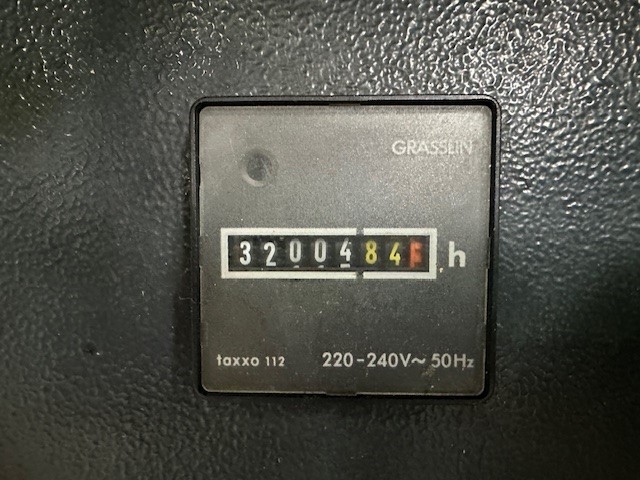

| 05-operating hours: | ca. 32.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 75 t |
| 12-opening path: | 320 mm |
| 13-mould installation height min: | 150 mm |
| 14-mould installation height max.: | 480 mm |
| 15-tie bar distance (h x v): | 405 x 380 mm |
| 16-plate dimension (h x v): | 575 x 570 mm |
| 17-centering (fix- movingplate): | 125 mm |
| 20-INJECTION UNIT: | IU300 |
| 21-screw diameter: | 30 mm |
| 22-injection weight in polystyrol: | 103 g |
| 23-stroke volume: | 113 cm³ |
| 24-injection pressure: | 2.500 bar |
| 30-CONTROL: | IQT44 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 2 x hydr. + 1 x pneum. |
| 42-air valves: | 1 |
| 43-hot runner control devices : | - |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | - |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 9,2 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 4.700 kg |
| 55-total size L x B x H: | 4,4 x 1,5 x 2,0 m |
