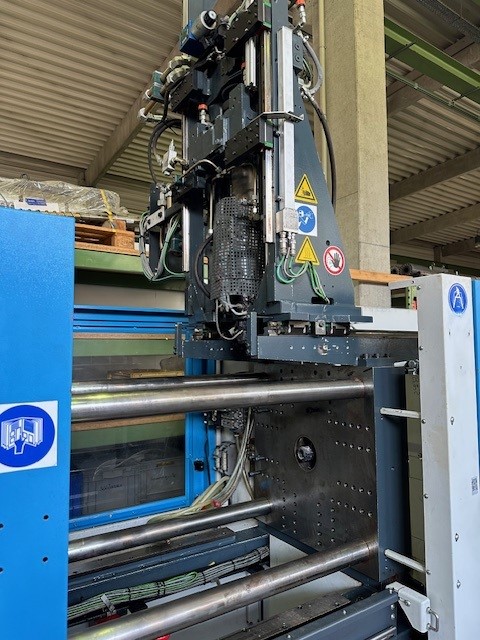

Ferromatik K-Tec 110-111H-111V-2F, 2011
Product information "Ferromatik K-Tec 110-111H-111V-2F, 2011"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Feromatik Milacron |
|---|---|
| 02-type: | K-Tec 110-111H-111V-2F |
| 03-year of construction: | 2011 |
| 04-condition: | technisch überarbeitet |

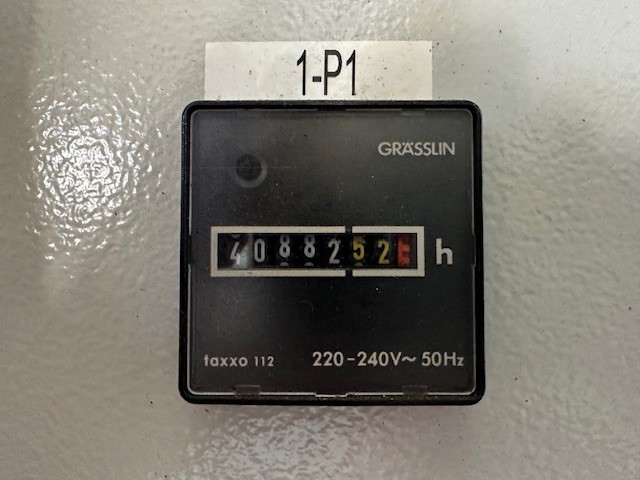

| 05-operating hours: | 40.885 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 110 t |
| 12-opening path: | 550 mm |
| 13-mould installation height min: | 250 mm + 200 mm |
| 15-tie bar distance (h x v): | 470 x 470 mm |

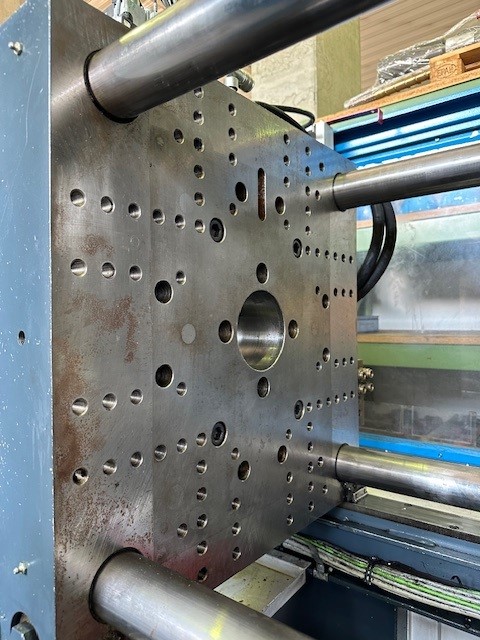

| 16-plate dimension (h x v): | 690 x 690 mm |
| 17-centering (fix- movingplate): | 125 / 125 mm |
| 20-1. INJECTION UNIT: | 111 H |
| 21-screw diameter: | 25 mm |
| 22-injection weight in polystyrol: | 45 g |
| 23-stroke volume: | 49 cm³ |
| 24-injection pressure: | 2.254 bar |
| 30-2. INJECTION UNIT: | 111 V |
| 31-screw diameter: | 18 mm |
| 32-stroke volume: | 25 cm³ |
| 33-injection weight in polystyrol: | 23 g |
| 34-injection pressure: | 2.236 bar |

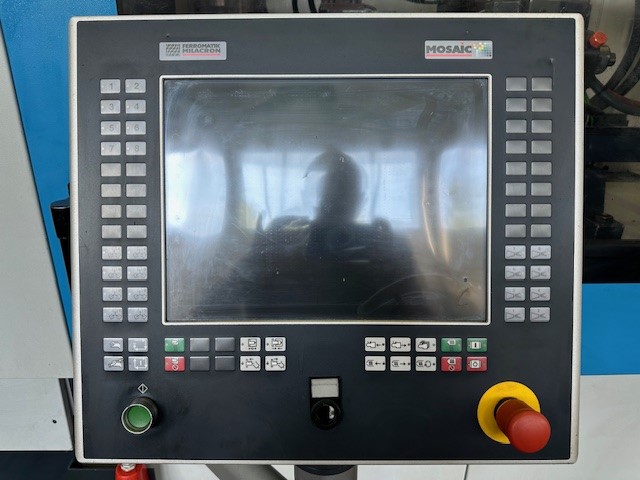

| 40-CONTROL: | Mosaic |
| 41-screen language: | DE |
| 42-operating manuel: | DE |
| 50-EQUIPMENT: | Holmverlängerung 200 mm, 1x Kernzug für Drehen, Robot PL60 verfügbar! |
| 51-core pulls: | 2 + 1 |
| 52-air valves: | ja |
| 53-hot runner control devices: | 12 |
| 54-robot interface: | EM 67 |
| 60-GENERAL DATA: | - |
| 61-installed heating capacity: | 8,4 kW |
| 62-pump drive power: | 38,4 kW |
| 63-total installed power: | Motor + Heizung |
| 64-total weight: | 6.500 kg |
| 65-total size L x B x H: | 5,2 x 1,8 x 3,6 m |
