Engel VICTORY 200/45 Tech + er/usp Picker, 2005
Product information "Engel VICTORY 200/45 Tech + er/usp Picker, 2005"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Engel |
|---|---|
| 02-type: | VICTORY 200/45 Tech + er/usp |
| 03-year of construction: | 2005 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | ca. 81.700 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 45 t |
| 12-opening path: | 355 mm |
| 13-mould installation height min: | 175 mm |
| 14-mould installation height max.: | - |
| 15-tie bar distance (h x v): | holmlos |
| 16-plate dimension (h x v): | 550 x 430 mm |
| 17-centering (fix- movingplate): | 100 / 100 mm |
| 20-INJECTION UNIT: | IU200 |
| 21-screw diameter: | 25 mm |
| 22-injection weight in polystyrol: | 63 g |
| 23-stroke volume: | 69 cm³ |
| 24-injection pressure: | 2.400 bar |

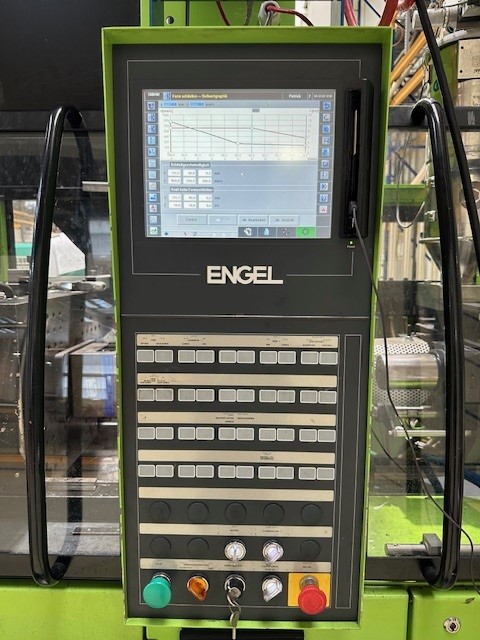

| 30-CONTROL: | CC100 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 1 |
| 42-air valves: | - |
| 43-hot runner control devices : | - |

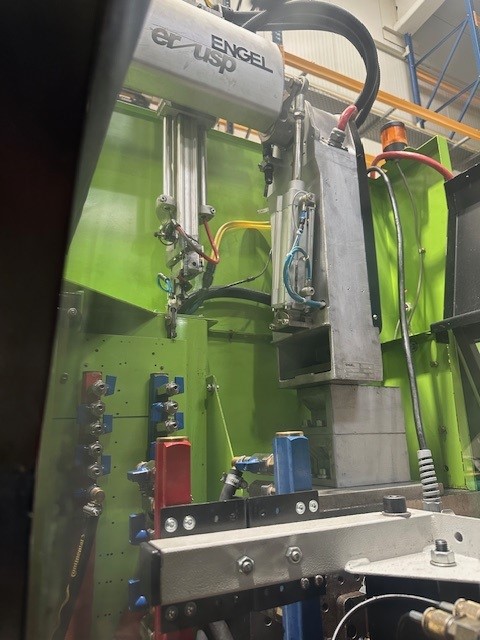

| 44-robot interface: | Angußpicker er/usp |
| 45-other equipment : | Nadelverschl. Hydr., Schnittstelle Dosier- und Temperiergerät |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 6,8 kW |
| 52-pump drive power: | 11 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 3.300 kg |
| 55-total size L x B x H: | 3,3 x 1,2 x 2,2 m |
