Engel VC 330/120 Tech + ERC23/1-F, 2007
Product information "Engel VC 330/120 Tech + ERC23/1-F, 2007"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Engel |
|---|---|
| 02-type: | VC 330/120 Tech + ERC23/1-F |
| 03-year of construction: | 2007 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | ca. 70.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 120 t |
| 12-opening path: | 500 mm |
| 13-mould installation height min: | 300 mm |
| 14-mould installation height max.: | - |

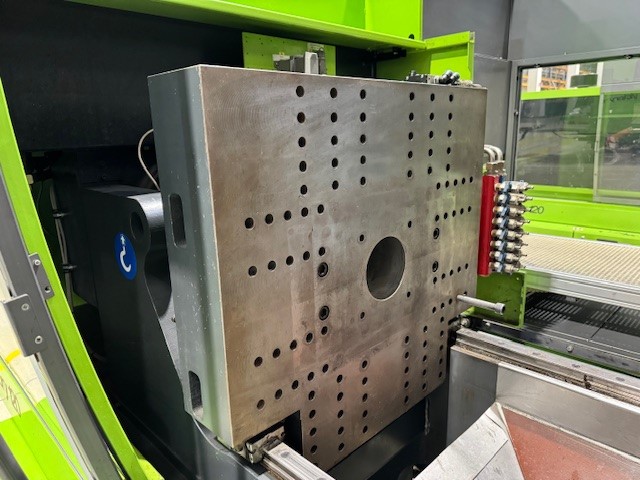

| 16-plate dimension (h x v): | 790 x 680 mm |
| 17-centering (fix- movingplate): | 125/125 mm |
| 20-INJECTION UNIT: | SPE330 |
| 21-screw diameter: | 35 mm |
| 22-injection weight in polystyrol: | 141 g |
| 23-stroke volume: | 154 cm³ |
| 24-injection pressure: | 2.175 bar |

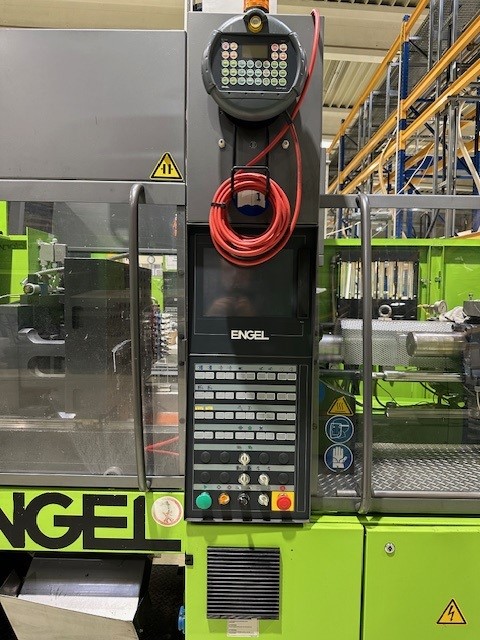

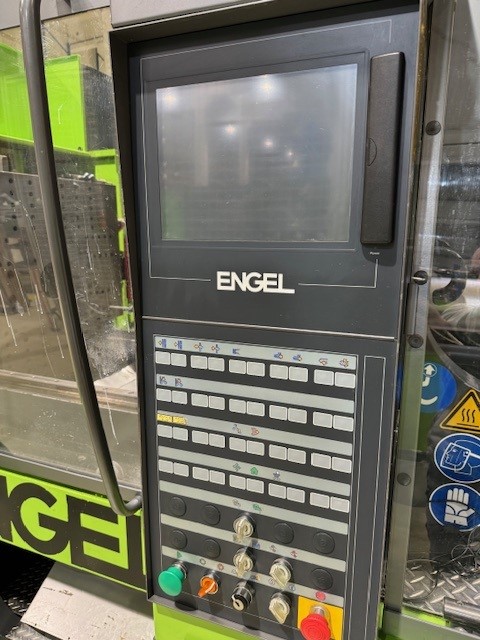

| 30-CONTROL: | CC200 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 2 |
| 42-air valves: | ja |
| 43-hot runner control devices : | - |

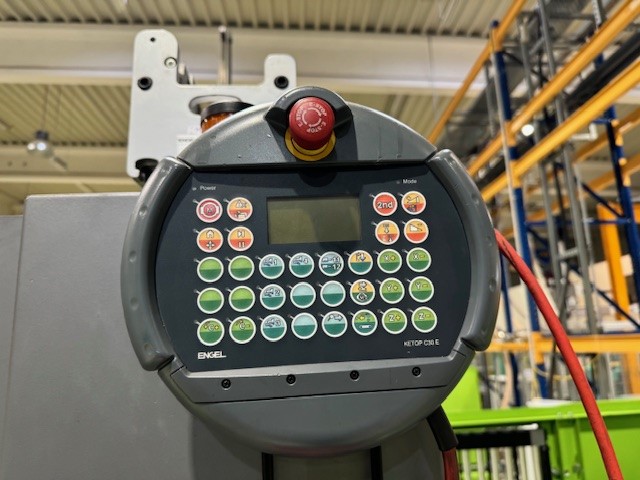

| 44-robot interface: | Engel integriert |

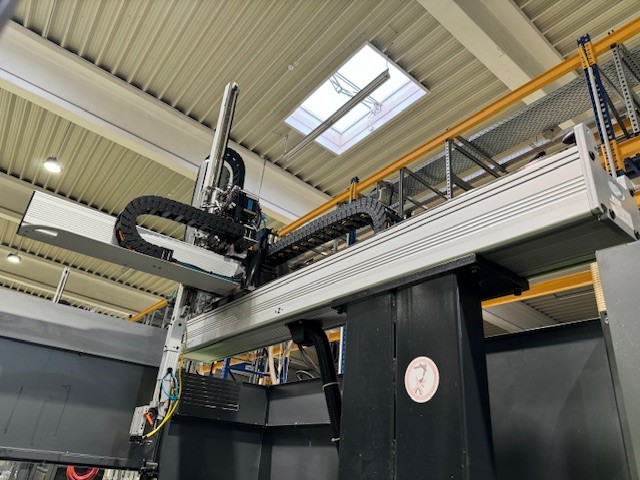

| 45-other equipment : | inkl. ERC 23/1-F mit integrierten Ablageband (Bediengegenseite) +750mm, Nadelverschluss (hydr. + pneumat.), Schnittstelle Farbdosierer und Temperiergerät. |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 9,2 kW |
| 52-pump drive power: | 15 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 7.300 kg |
| 55-total size L x B x H: | 4,4 x 1,4+0,8 x 2,0 m |
