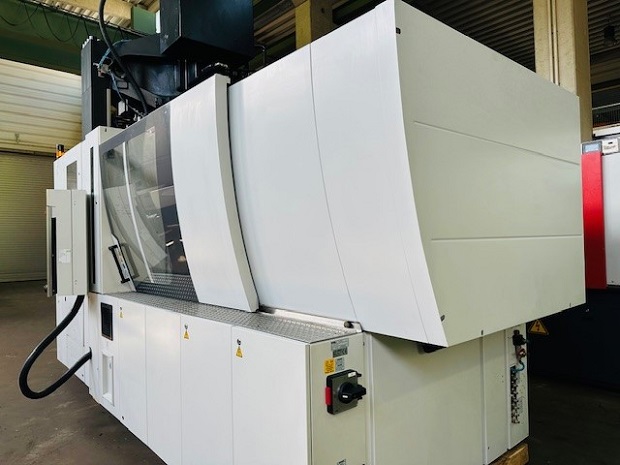

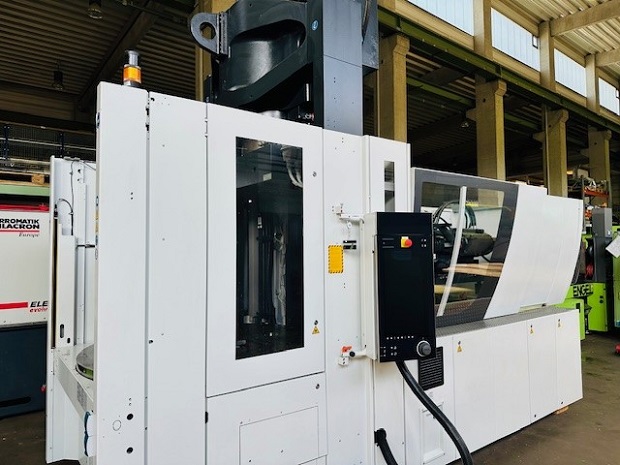

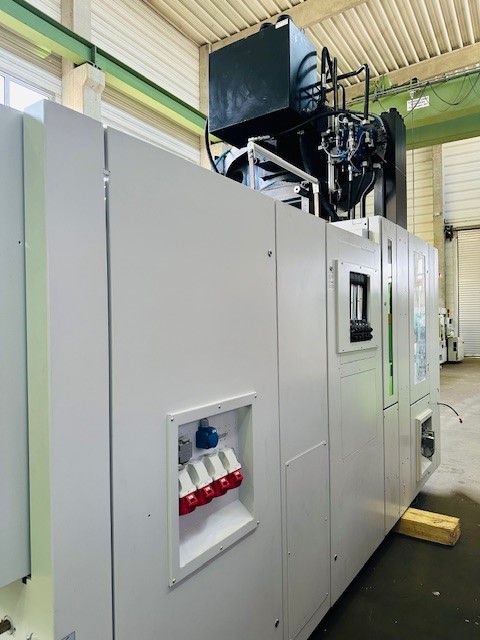

Engel INSERT 1050H/300 Rotary, 2017
Product information "Engel INSERT 1050H/300 Rotary, 2017"
Frachtbasis: FCA Pegnitz
Lieferzeit: nach Absprache
Zahlungsbedingung: 100% vor Übernahme der Maschine, rein netto
| 01-manufacturer: | Engel |
|---|---|
| 02-type: | INSERT 1050H/300 Rotary |
| 03-year of construction: | 2017 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | ca. 30.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 300 t |
| 12-opening path: | 400 mm |
| 13-mould installation height min: | 680 mm |
| 14-mould installation height max.: | - |
| 16-plate dimension (h x v): | 820 x 460 mm |
| 17-centering (fix- movingplate): | 125/125 mm |

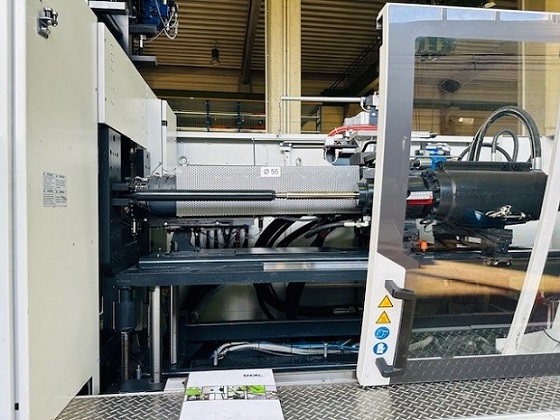

| 20-INJECTION UNIT: | SPE1050 |
| 21-screw diameter: | 55 mm |
| 22-injection weight in polystyrol: | 460 g |
| 23-stroke volume: | 511 cm³ |
| 24-injection pressure: | 1.620 bar |
| 30-CONTROL: | CC300 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 2 + 1 |
| 42-air valves: | ja |
| 43-hot runner control devices : | 16, mit Heizstromüberwachung |
| 44-robot interface: | Euromap 67.1 + 67/AN-146 |
| 45-other equipment : | 2 x Schnittstelle potentialfreier Kontakt, Schnittstelle Temp.ger. RS485 + 3 x Verschlauchung v. 3 Temp.kr., PD-Grafik I, Hydr. Antrib HV2, CE-Konform |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 16,4 kW |
| 52-pump drive power: | 55,0 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 17.000 kg |
| 55-total size L x B x H: | 4,7 x 1,8+0,8 x 3,6 m |
