Demag Ergotech EL EXIS S 60/370-310, 2001
Product information "Demag Ergotech EL EXIS S 60/370-310, 2001"
electric dosing: 15 kW
electrc clamping: 9,8 kW
You can find all technical data on our homepage!
Payment: 100% prior to delivery
electrc clamping: 9,8 kW
You can find all technical data on our homepage!
Payment: 100% prior to delivery
| 01-manufacturer: | Demag |
|---|---|
| 02-type: | Ergotech EL EXIS S 60/370-310 |
| 03-year of construction: | 2001 |
| 04-condition: | technisch überarbeitet |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 60 t |
| 12-opening path: | 350 mm |
| 13-mould installation height min: | 160 mm |
| 14-mould installation height max.: | - |
| 15-tie bar distance (h x v): | 370 x 370 mm |
| 16-plate dimension (h x v): | - |
| 17-centering (fix- movingplate): | - |
| 20-INJECTION UNIT: | - |
| 21-screw diameter: | 30 mm |
| 22-injection weight in polystyrol: | 100 g |
| 23-stroke volume: | 106 cm³ |
| 24-injection pressure: | 2.750 bar |

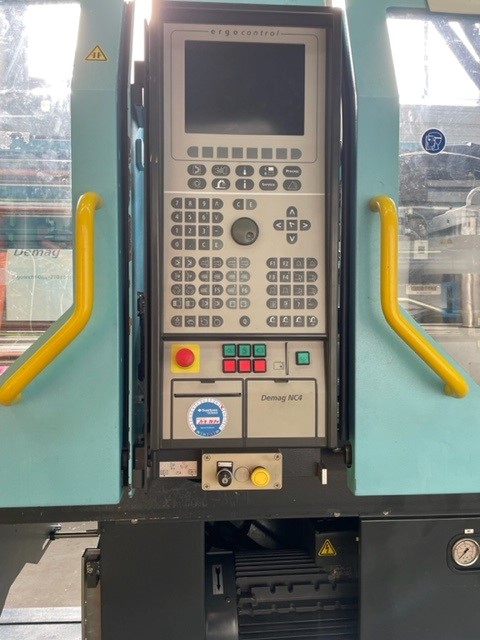

| 30-CONTROL: | NC4 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 1 |
| 42-air valves: | - |
| 43-hot runner control devices : | - |
| 44-robot interface: | Euromap 12 |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | - |
| 52-pump drive power: | 5,5 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 5.000 kg |
| 55-total size L x B x H: | 4,6 x 1,5 x 2,0 m |
