BOY 55E, 2013
Product information "BOY 55E, 2013"
terms of delivery: FCA Pegnitz
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | BOY |
|---|---|
| 02-type: | BOY 55E |
| 03-year of construction: | 2013 |
| 04-condition: | technisch überarbeitet |
| 05-operating hours: | ca. 33.000 |

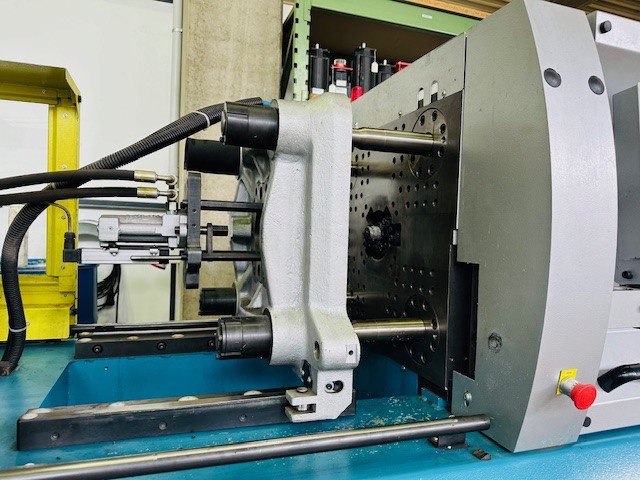

| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 55 t |
| 12-opening path: | 400 mm |
| 13-mould installation height min: | 250 mm |
| 14-mould installation height max.: | - |
| 15-tie bar distance (h x v): | 360 x 335 mm |
| 16-plate dimension (h x v): | - |
| 17-centering (fix- movingplate): | - |
| 20-INJECTION UNIT: | IU205 |
| 21-screw diameter: | 32 mm |
| 22-injection weight in polystyrol: | 92,3 g |
| 23-stroke volume: | 96,5 cm³ |
| 24-injection pressure: | 2.127 bar |

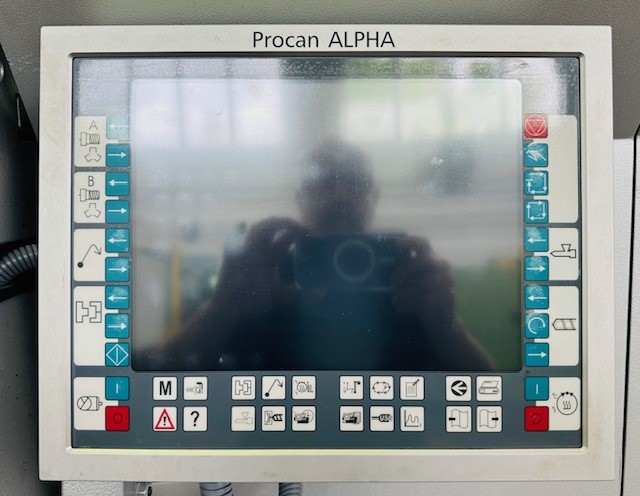

| 30-CONTROL: | PROCAN ALPHA |
| 31-screen language: | DE / EN / IT / ES |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | - |
| 42-air valves: | 1x (Steuerung) |
| 43-hot runner control devices : | - |
| 44-robot interface: | Euromap 67 |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 7,7 kW |
| 52-pump drive power: | 11,0 kW |
| 53-total installed power: | 18,7 kW |
| 54-total weight: | 2.300 kg |
| 55-total size L x B x H: | 3,5 x 1,2 x 2,1 m |
