Arburg 920 S 5000-2100, 2007
Product information "Arburg 920 S 5000-2100, 2007"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Arburg |
|---|---|

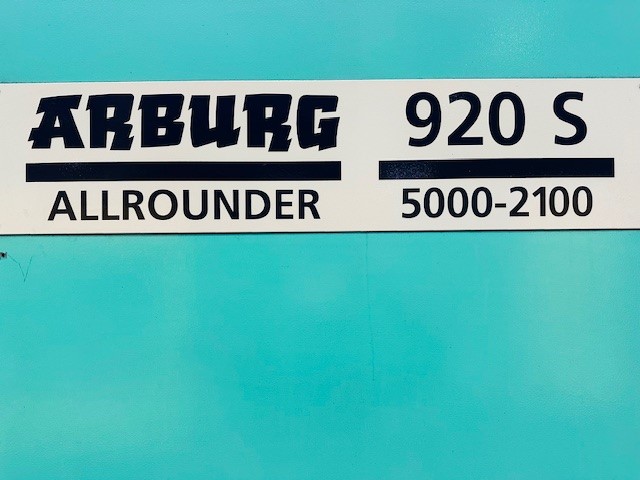

| 02-type: | A920 S 5000-2100 |
| 03-year of construction: | 2007 |
| 04-condition: | überarbeitet |

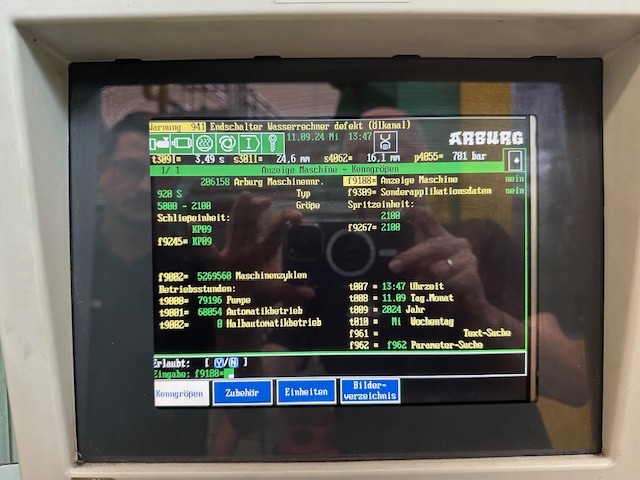

| 05-operating hours: | ca. 69.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 500 t |
| 12-opening path: | 900 mm |
| 13-mould installation height min: | 400 mm |
| 14-mould installation height max.: | 1050 mm |
| 15-tie bar distance (h x v): | 920 x 920 mm |
| 16-plate dimension (h x v): | 1340 x 1375 mm |
| 17-centering (fix- movingplate): | 200 / 200 mm |
| 20-INJECTION UNIT: | IU2100 |
| 21-screw diameter: | 70 mm |
| 22-injection weight in polystyrol: | 984 g |
| 23-stroke volume: | 1078 cm³ |
| 24-injection pressure: | 2.000 bar |

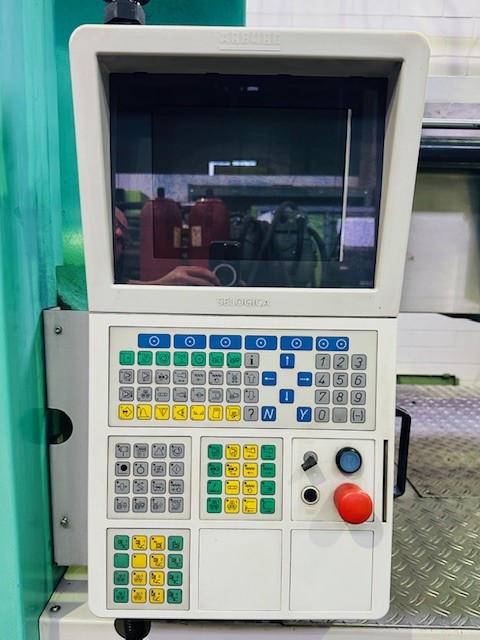

| 30-CONTROL: | Selogica |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | Dichtsätze Schließ- und Spritzseitig neu / Sealing kits new on closing and injection side |
| 41-core pulls: | 2 |
| 42-air valves: | - |
| 43-hot runner control devices : | 15 |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | Handling auf Anfrage: W822-1707, 2016, x - Achse 550, Y - 1200, Z - 2500, C - Achse kpl., B- Achse 0°/270° pneum., 2 x Vakuum, 2 x Luft |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 33,9 kW |
| 52-pump drive power: | 75,0 kW |
| 53-total installed power: | 108,9 kW |
| 54-total weight: | 25.000 kg |
| 55-total size L x B x H: | 9,1 x 2,2 x 2,50 m |
